LC LED-SLT-775GY: PLCC Bicolor
Green & Yellow SMD LED
LC LED Power Top SMD Green and Yellow (120 Degree)
|
PRODUCT DESCRIPTION |
|
|
(1) RoHS Compliant
Part |
(4) Suitable for
SMT Assembly |
|
(2) Super Bright
Bi-Color SMD LED Green & Yellow |
(5) Sun Light
Viewable SMD LED |
|
(3) Excellent color
mixing characteristics |
(6) Rugged design
suitable for both indoor & outdoor use |
Absolute Maximum Rating
(Ta = 250C)
|
PARAMETER |
MAXIMUM RATING |
UNITS |
|
DC Forward Current |
30 |
mA |
|
Peak Pulse Forward Current (1) |
125 |
mA |
|
Avg. Forward Current |
30 |
mA |
|
Operating Temperature |
-40
to +80 |
0C |
|
Storage Temperature |
-40
to +85 |
0C |
(1) Pulse width of 1/10 duty and 0.10msec width,
for long operating life, max. of 20mA recommended
Electro-optical
Characteristics (Ta = 250C)
|
PARAMETER |
SYMBOL |
CONDITIONS |
MIN. |
TYP. |
MAX. |
UNIT |
|
Forward
Voltage (Green) |
VF |
IF
= 20mA |
3.0 |
|
3.6 |
V |
|
Forward Voltage
(Yellow) |
VF |
IF
= 20mA |
1.7 |
|
2.1 |
V |
|
Capacitance
(Green) |
C |
Vf
= 0V, f = 1MHz |
|
45 |
|
pF |
|
Capacitance
(Yellow) |
C |
Vf
= 0V, f = 1MHz |
|
35 |
|
pF |
|
Reverse
Voltage |
VR |
IR
= 100mA |
|
|
5 |
V |
|
Dominant
Wavelength (Green) |
lD |
IF
= 20mA |
520 |
|
535 |
nm |
|
Dominant Wavelength
(Yellow) |
lD |
IF
= 20mA |
588 |
|
595 |
nm |
|
Viewing Angle |
2q1/2 |
IF
= 20mA |
|
120 |
|
Deg. |
|
Luminous
Intensity (Green) |
IV |
IF
= 20mA |
800 |
1,500 |
mcd |
|
|
Luminous
Intensity (Yellow) |
IV |
IF
= 20mA |
500 |
900 |
mcd |

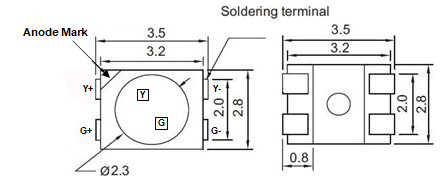

DEVICE DIAGRAM
|
